Capstone: ShopStream

Part 1: Scope and requirements

The story

It is Monday morning. You are a new data engineer at ShopStream, an online shop that sells across India.

The big festival sale starts on Friday. Last year, the sales team had a problem. Their numbers came from a job that ran once every night. During the sale, they did not know how much they were selling until the next day. They could not move stock. They could not fix problems in time.

Your manager, Anita, calls you to her desk.

"This year, we use Kafka," she says. "Every order event goes into a topic. I need three things by Friday:

Every valid order saved in a database, with its latest status.
Live sales numbers for each delivery zone.
A way to look back and rebuild the numbers for any period, if something goes wrong."

She also gives you a warning.

"Our partner apps send messy data. Some events are broken. Do not let one bad event stop the pipeline. And do not lose good events, even if a program crashes."

This capstone is that project. You will build it, step by step, in Java, using the Producer API and the Consumer API from this course.

What you will build

You will build five small programs.

Program	Its job
Order Service (producer)	Sends new orders and payments to Kafka
Fulfilment Service (producer)	Sends shipping, delivery and cancel events to Kafka
Order Loader (consumer)	Checks every event, saves good ones in a database, sends bad ones to a dead-letter topic
Sales Aggregator (consumer)	Counts orders and sales per zone, per minute
Replay tool	Rebuilds the sales numbers for any time period straight from Kafka

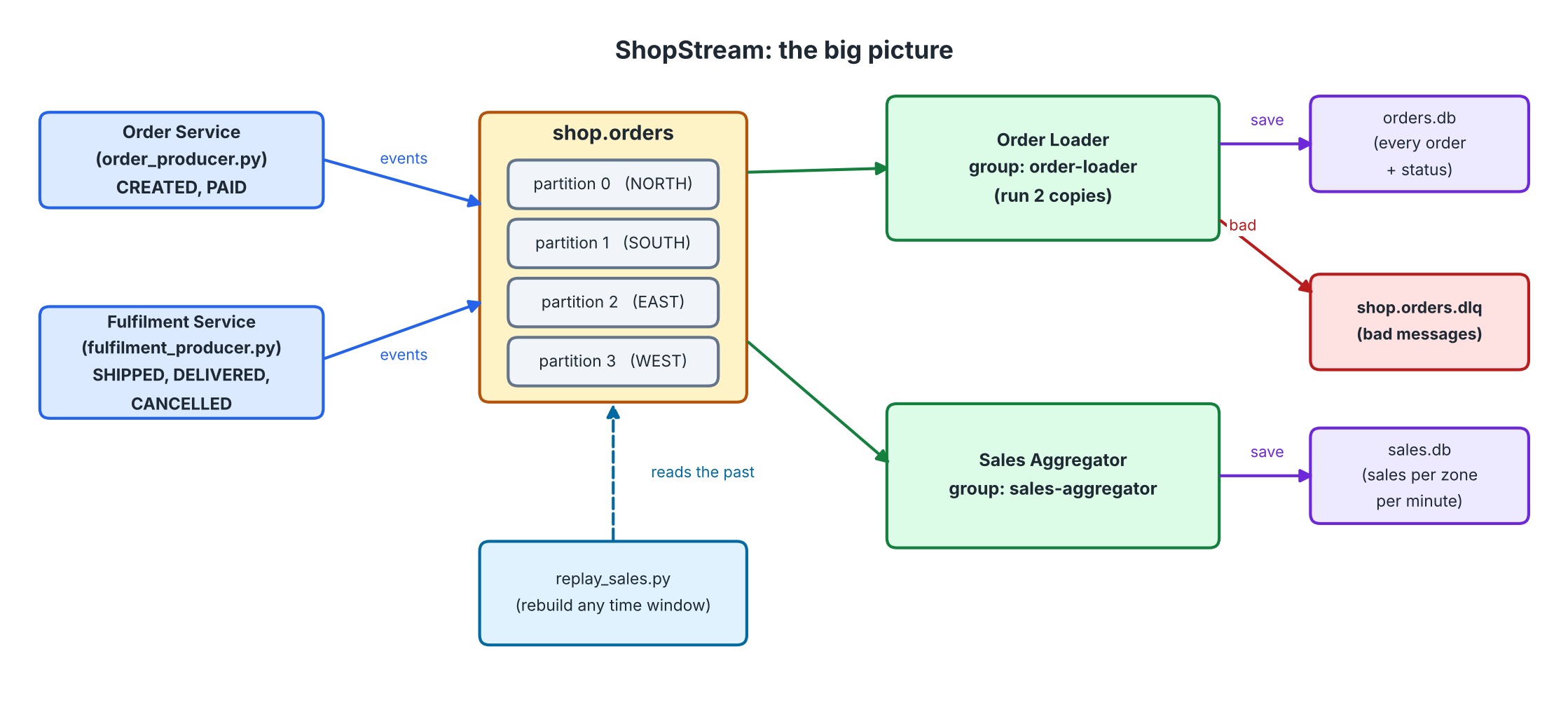

Here is the big picture.

The big picture of ShopStream The big picture of ShopStream

How long will it take? Plan for about 3 to 4 hours. You can split it over two days.

What you need before you start

The 3-broker Kafka cluster from the course, running
A JDK (21 or newer) and Maven, the same project setup you used in the producer and consumer chapters
The starter kit (a separate download)

The starter kit has:

File	What it is
`Config.java`	Broker addresses, topic names. Use it in your own classes
`SetupTopics.java`	Creates the two topics. Run it with the program argument `--reset` to start again from zero
`data/orders.jsonl`	Events for the Order Service to send
`data/fulfilment.jsonl`	Events for the Fulfilment Service to send
`data/expected_results.json`	The numbers your pipeline should produce
`VerifyResults.java`	Checks your results against the expected numbers
`pom.xml`	The dependencies you need, already wired up

Get ready like this: open the starter kit folder in IntelliJ IDEA, click Load Maven Changes if asked, then run SetupTopics once.

Write all your classes in the same project, under com.kafkacourse.ch06.

The data

Delivery zones

ShopStream has four delivery zones: NORTH, SOUTH, EAST and WEST.

Topics

Topic	Partitions	Replication factor	Purpose
`shop.orders`	4	3	All order events
`shop.orders.dlq`	3	3	Bad messages (the dead-letter topic)

SetupTopics creates both. It also sets min.insync.replicas to 2.

Event types

Every event is a JSON object. There are five types.

Event type	Sent by	Meaning
`ORDER_CREATED`	Order Service	A customer placed an order
`ORDER_PAID`	Order Service	The payment came through
`ORDER_SHIPPED`	Fulfilment Service	The order left the warehouse
`ORDER_DELIVERED`	Fulfilment Service	The customer received it
`ORDER_CANCELLED`	Fulfilment Service	The order was cancelled

An ORDER_CREATED event looks like this:


json
{"event_id": "E-CRE-0000", "event_type": "ORDER_CREATED", "order_id": "O-1001",
 "zone": "SOUTH", "customer_id": "C-008", "amount": 4999, "currency": "INR"}

The other four types are shorter. They have no customer and no amount:


json
{"event_id": "E-SHI-0076", "event_type": "ORDER_SHIPPED", "order_id": "O-1077", "zone": "SOUTH"}

The fields

Field	Used in	Rule for a good event
`event_id`	all	Must be present. It is unique for each event
`event_type`	all	Must be one of the five types above
`order_id`	all	Must be present
`zone`	all	Must be `NORTH`, `SOUTH`, `EAST` or `WEST`
`customer_id`	`ORDER_CREATED` only	Must be present
`amount`	`ORDER_CREATED` only	Must be a number greater than 0
`currency`	`ORDER_CREATED` only	Always `INR`
`event_time`	all	Added by the producer when it sends the event

The messy truth

The data files are not clean. Look inside them. You will find:

lines that are not JSON at all
events with a missing field
events with a zone that does not exist
events with an amount that is zero, negative or text
events with an unknown event type
the same event sent twice
status events that arrive in the wrong order (for example, DELIVERED before SHIPPED)

Your pipeline must deal with all of these.

Requirements

A. Both producers

#	Requirement
A1	Read the file line by line and send each line to `shop.orders`.
A2	For a good JSON event, use `order_id` as the message key.
A3	For a good JSON event, add an `event_time` field (the current time in UTC) if it is not there.
A4	Use your own partitioning rule: one zone, one partition. `NORTH` goes to partition 0, `SOUTH` to 1, `EAST` to 2, `WEST` to 3. Write it as a real `Partitioner`, the way you built `PremiumPartitioner` in the producer chapter — not as a value you compute by hand and pass to `ProducerRecord`.
A5	If the zone is unknown or missing, your partitioner must not invent an answer. Fall back to the same choice the default partitioner would make.
A6	A line that is not a JSON object must still be sent, as it is, with no key. Cleaning is the consumer's job.
A7	Use safe delivery: idempotent producer and `acks=all`.
A8	Use batching and compression: set `linger.ms`, `batch.size` and a compression type.
A9	Use a delivery callback. Count the messages delivered to each partition and print the count at the end. Report any failure.
A10	Handle it if the local buffer stays full past `max.block.ms` — unlike the clients built on `librdkafka`, the Java producer's `send()` already blocks and waits for you. There is no manual poll-and-retry loop to write; there is a `TimeoutException` to catch.
A11	Call `flush()` before the program exits. Exit with a non-zero code if any message failed.
A12	Accept `--rate` (messages per second) and `--limit` (stop after N messages) as program arguments.

The two producers are two separate classes. They share the same rules. Put the shared code in one class.

B. Order Loader

#	Requirement
B1	Use the consumer group `order-loader`. Start from the earliest message when the group is new.
B2	Use the cooperative-sticky assignment strategy.
B3	Check every message using the rules in the field table above.
B4	Save good events in the SQLite database `orders.db` (see "The database contract" below).
B5	Ignore duplicates. If an `event_id` was already processed, do nothing.
B6	A status must never go backwards. The order is: `CREATED` < `PAID` < `SHIPPED` < `DELIVERED`. `CANCELLED` is the highest. A late `SHIPPED` event must not change a `DELIVERED` order.
B7	A status event can arrive before the `ORDER_CREATED` event of that order. Save it anyway. Fill in the missing details when `ORDER_CREATED` arrives later.
B8	Send every bad message to `shop.orders.dlq`. Keep the original key and value. Add headers: `error` (a short reason code), `source` (topic, partition and offset) and `failed_at`.
B9	Wait until Kafka confirms the DLQ copy before you move on.
B10	Safe order of work: save first, commit after. Turn off `enable.auto.commit`, and call `commitSync()` yourself, only after every record in the batch is saved (or dead-lettered).
B11	Print a message when partitions are assigned and when they are revoked. When partitions are revoked, commit your progress.
B12	Stop cleanly on Ctrl+C, the same `wakeup()` and shutdown-hook pattern you used in the consumer chapter.
B13	Two copies of the loader must be able to run together and share the work.

C. Sales Aggregator

#	Requirement
C1	Use a different consumer group: `sales-aggregator`. It must read all events, even though the Order Loader reads them too.
C2	Count only `ORDER_CREATED` events. Ignore everything else, including bad messages.
C3	For each zone and each minute, keep the number of orders and the total amount. Save it in `sales.db`.
C4	Decide the minute from the timestamp stored by Kafka on the record (`ConsumerRecord.timestamp()`), not from the time you read it.
C5	Ignore duplicate events, using `event_id`.
C6	Use the same safe order as the loader: save first, commit after.
C7	When it stops, print a small table of orders and revenue per zone.

D. Replay tool

#	Requirement
D1	Accept `--from` and `--to` (UTC, like `"2026-11-06 14:05"`). The window includes `--from` and does not include `--to`.
D2	Find where to start with `offsetsForTimes()`. Read each partition until the end time or the end of what existed when the tool started.
D3	Do not use a `group.id` at all, and never commit. The replay tool must never disturb the real consumers.
D4	Count orders and revenue per zone for the window, with the same rules as the Sales Aggregator.
D5	If `sales.db` exists, compare its numbers for the same window. Print `MATCH` or `DIFFERENT`.

The database contract

Your checker (VerifyResults) reads your databases. So your tables must use these names.

orders.db, table orders

Column	Type	Meaning
`order_id`	text, primary key	The order
`zone`	text	Delivery zone
`customer_id`	text	The customer
`amount`	integer	Order amount in rupees
`status`	text	One of `CREATED`, `PAID`, `SHIPPED`, `DELIVERED`, `CANCELLED`

You may add more columns or tables. These columns must exist.

sales.db, table sales_by_minute

Column	Type	Meaning
`zone`	text	Delivery zone
`minute`	text	Like `2026-11-06 14:05` (UTC)
`orders`	integer	Orders in that minute
`revenue`	integer	Total amount in that minute

How to check your work

Start your consumers. Send the data with both producers. Wait until the consumers have caught up. Stop them. Then run VerifyResults.

You will see something like this when everything is right:

1. orders.db  (made by the Order Loader)
  [PASS] number of orders
  [PASS] orders and amount per zone
  [PASS] orders per status

2. sales.db  (made by the Sales Aggregator)
  [PASS] orders and revenue per zone

3. Dead-letter topic  (bad messages)
  [PASS] number of messages in the DLQ

ALL CHECKS PASSED. Well done!

If a check fails, the checker shows what it expected and what it found.

Do these failure tests too

Passing the checker is not the end. Prove that your pipeline is strong.

Two loaders. Start two Order Loaders. Check that each one gets different partitions.
Stop one loader. While data is flowing, press Stop in one loader. The other must take over its partitions.
Crash one loader. Kill a loader's process directly (not the Stop button). Start it again. Run the checker. The numbers must still be right. Note: Kafka may take up to 45 seconds to notice that a member is gone.
Stop a broker. Stop one of the three Kafka brokers while the producers run. Nothing should be lost.
Replay. Note the time when you start the producers. When everything is done, run the replay tool for that time. It must print MATCH.

Rules and tips

Do not hard-code the expected numbers in your programs. Your programs must work for any valid data.
To start again from zero, run SetupTopics with the program argument --reset. This deletes the topics and your two database files.
Start the consumers before the producers if you want to watch the work live.
If something does not work, read the exception first. Then check the container logs.
Try the capstone on your own first. The next two parts help you: Part 2 explains the design, Part 3 walks you through a full solution.

Extra challenges (optional)

When you finish, try one of these on your own:

Add a --zone option to the Sales Aggregator, so one copy reads only that zone. Hint: use assign() directly on that zone's partition, the way the replay tool does.
Make the loader save in batches of 20 events instead of one by one. What changes in your safe order?
Add a third consumer group that writes every ORDER_CANCELLED event to a text file.
